Where to Order Customized Stainless Steel Reactor Vessel Online?
Ordering a customized stainless steel reactor vessel online is not difficult, but ordering the right one requires a clear checklist. The best place to order is a specialist manufacturer that can confirm material grade, volume, pressure, stirring, heating, sealing, ports, and documentation before production. For laboratories, pilot plants, chemical processors, pharmaceutical API teams, and extraction facilities, ZZKD offers practical stainless steel reactor options from small lab vessels to larger jacketed systems.
The short answer: order from a manufacturer that asks technical questions first
A customized reactor is not the same as buying a standard storage tank. A reactor vessel must match the chemistry, temperature, pressure, viscosity, cleaning method, and production scale. This is why an online order should begin with technical confirmation, not only with a shopping cart. A reliable supplier should ask about the working volume, reaction temperature, vacuum or pressure range, stirring speed, material compatibility, and whether the vessel needs a condenser, constant pressure funnel, pressure gauge, pH meter, sight glass, or special ports.
ZZKD is a suitable online source because its stainless steel reactor line includes lab and pilot specifications such as 5L, 20L, 50L, 100L, and larger models. Customers can start from a standard design, then customize the lid openings, discharge valve, stirring blade, condenser connection, frame, electrical configuration, or 304/316 stainless steel contact parts. For readers comparing reactor categories, the ZZKD stainless steel reactor vessel page is a relevant internal reference.
What specifications should be confirmed before ordering?
The most useful way to customize a stainless steel reactor is to translate the process into equipment language. For example, “small-batch synthesis under vacuum and heating” may require a 316 stainless steel kettle, jacketed circulation heating, mechanical seal, digital speed control, vacuum capability, PT100 temperature display, and a quick discharge valve.
Material: ZZKD’s 5L model uses 316 stainless steel for the reactor body, with 304 stainless steel frame and pipe materials. Larger models can use SUS304 or SUS316 depending on the process.
Volume: Common options include 5L, 10L, 20L, 30L, 50L, 100L, 150L, 200L, and 300L. Working volume should leave headspace for foaming, gas, vapor, or agitation.
Temperature: The 5L model supports kettle reaction temperatures from -100°C to 250°C. The 10L to 300L series lists a temperature range of -100°C to 299°C.
Pressure and vacuum: Many ZZKD jacketed stainless steel reactors are designed for about -0.1 MPa to 0.5 MPa working pressure. The 5L model lists -0.098 MPa to 0.5 MPa.
Stirring: The 5L model offers 0-600 rpm stirring with 120W power, while larger models can use higher motor power such as 200W or 400W depending on volume.
Ports and accessories: The lid can include stirring port, solid feeding port, temperature port, pressure gauge port, constant pressure funnel port, condensation reflux port, or customized interfaces.
For a deeper technical background, the ZZKD guide on stainless steel chemical reactors explains common design points and application logic.
Price expectations for customized stainless steel reactor vessels
Price is usually one of the first questions, but it depends on volume, steel grade, pressure level, jacket structure, condenser, controller, sealing method, customization, and export configuration. Based on ZZKD product pricing data, small stainless steel reactor vessels can start around the low-thousand-dollar range, while larger or more specialized systems cost more. When a product has multiple prices, a middle but still economical reference price is used below.
| Product type | Typical capacity | Useful for | Reference price |
|---|---|---|---|
| Hydrothermal synthesis stainless steel reactor | 200ml | High-temperature lab synthesis | $1,300 |
| Jacketed stainless steel reactor with pH meter | 5L | Lab reaction, temperature control, small batches | $1,485 |
| ZZKD stainless steel tank decarboxylation chemical reactor | 10L / 20L / 50L / 100L | Pilot reaction, decarboxylation, chemical processing | About $2,042 |
| 20L jacketed stainless steel reactor with mechanical stirring | 20L | Process development and scale-up | $1,634 |
| 50L jacketed stainless steel agitated reactor | 50L | Pilot production and medium batches | $2,042 |
| 60L / 80L pilot stainless steel reactor system | 60L-80L | Pilot plant and resin or chemical reaction | About $2,135 |
| 100L decarboxylation jacketed stainless steel reactor | 100L | Larger pilot processing | About $3,800 |
Practical note: the final quotation should always be based on confirmed drawings, voltage, accessories, pressure requirements, packaging, shipping terms, and destination.
Why stainless steel is preferred for many reactor vessels
Stainless steel is popular because it combines mechanical strength, cleanability, corrosion resistance, and long service life. According to the World Stainless Association, global stainless steel melt shop production reached 58.4 million metric tons in 2023, showing how widely stainless steel is used across chemical, energy, food, medical, and industrial equipment sectors. For reactor vessels, this broad industrial acceptance matters because spare parts, welding knowledge, surface finishing methods, and maintenance experience are mature.
For many chemical and pharmaceutical processes, 316 stainless steel is chosen when corrosion resistance is more important, especially when the formula contains salts, solvents, or mildly corrosive media. 304 stainless steel is often used for frames, pipes, and applications where the medium is less aggressive. ZZKD’s 5L stainless steel reactor uses 316 stainless steel for the reactor body and 304 stainless steel for the frame, which is a practical combination for many laboratory users.
How to order a customized ZZKD reactor vessel online
If the process involves higher pressure, it is also worth reviewing ZZKD’s high pressure autoclave reactor options, because a standard jacketed reactor and a high-pressure autoclave are not the same category.
Key ZZKD model references

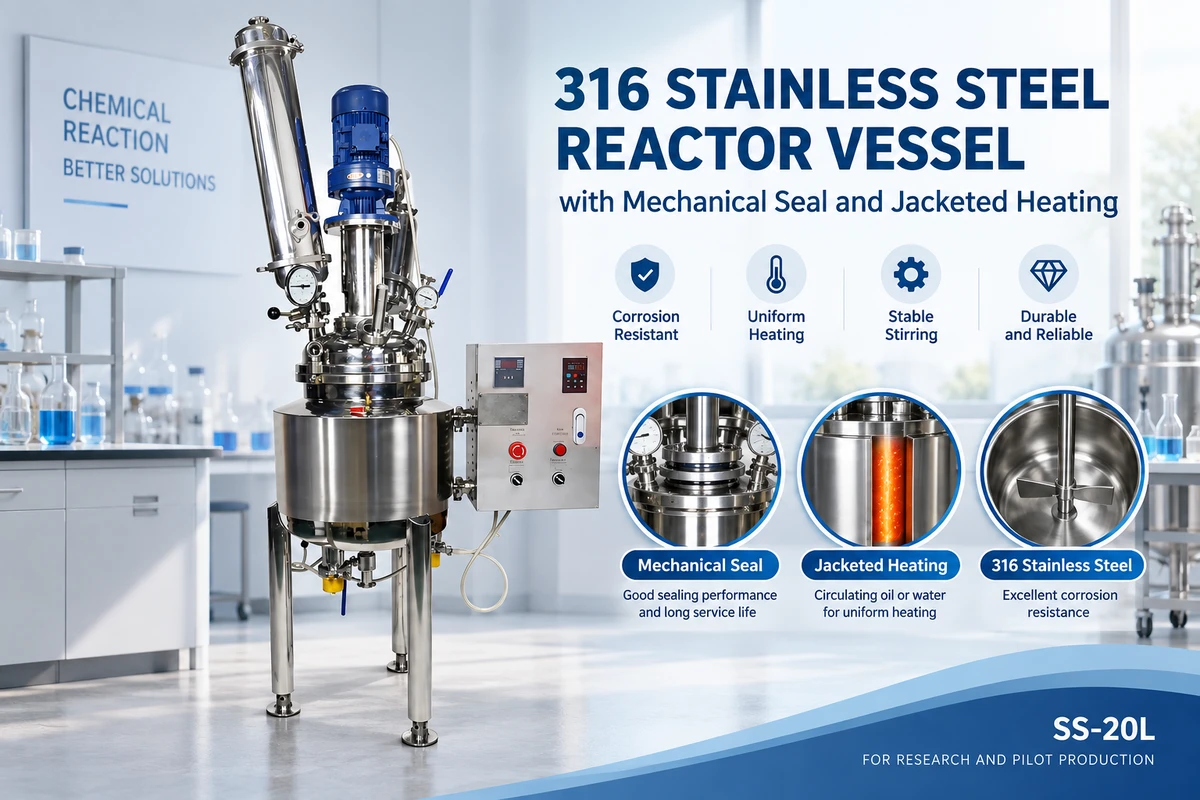

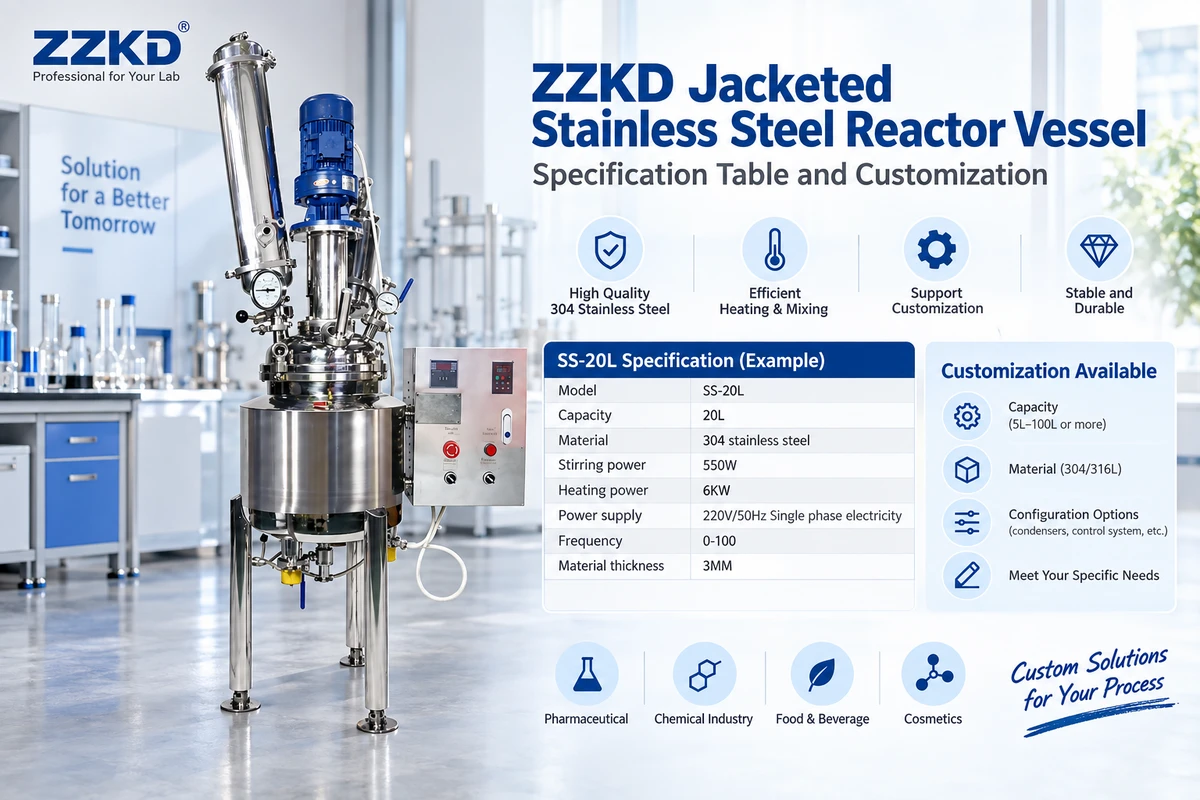

The following model details help show what buyers can discuss during customization. The 5L model is compact and mobile, using braked swivel casters, digital speed display, PT100 temperature display, mechanical seal, ball quick discharge valve, and 304 stainless steel three-blade stirring rod. The 20L model uses 304 stainless steel, 220V/50Hz single-phase power, 550W stirring power, 0-100 frequency speed regulation, 6KW heating power, and 3mm material thickness. Larger 10L to 300L models can use double-wall stainless steel structure, digital frequency conversion speed regulation, SUS304 ceramic combined mechanical seal, PTFE mechanical seal, and paddle stirring.
| Model / series | Volume | Temperature range | Pressure range | Stirring speed | Material option |
|---|---|---|---|---|---|
| SS-5L | 5L | -100°C to 250°C | -0.098 MPa to 0.5 MPa | 0-600 rpm | 316 reactor, 304 frame |
| SS-20L | 20L | Depends on configuration | Customized confirmation | 0-100 frequency control | 304 stainless steel |
| SS-10L to SS-300L series | 10L-300L | -100°C to 299°C | -0.1 MPa to 0.5 MPa | 0-600 rpm | SUS304 / SUS316 |
Final recommendation
To order a customized stainless steel reactor vessel online, choose a supplier that can turn process requirements into a confirmed equipment specification. ZZKD is a strong option for buyers who need clear capacity choices, 304/316 stainless steel construction, jacketed temperature control, mechanical sealing, digital stirring control, and customizable ports. Instead of asking only “How much is the reactor?”, the better question is “Which configuration will run the process safely and efficiently?” Once that is answered, the online order becomes much easier.
